Quick Assembly SC connector can provide quick and easy terminations of fibers in the field, and options are available for 900 micron and 250 micron. It allows the installer to terminate and make connection in minutes at equipment and fiber patch panels.
This connector system removes any requirement for epoxy, adhesives or costly curing ovens, with features of high installation quality, high success rate and high reliability.
Application:
Distribution frames
Maintenance or emergency restoration of fiber networks
FTTH Outlets
Patch panels
Features:
Factory-installed fiber stub
No epoxy or polishing required
Quick and easy fiber termination in the field
Eliminates cable excess length and pigtail splice storage
Cost effective

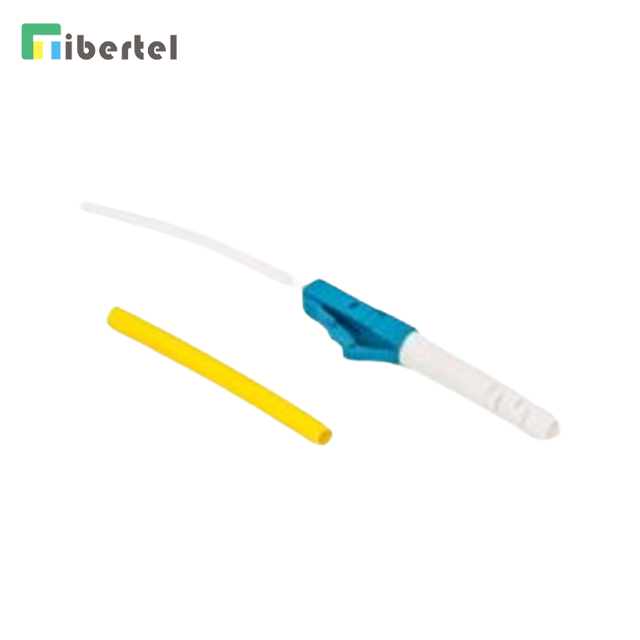

Product Name | Fiber Optic Fast Connector |
Connector Type | LC |
Part No. | TJ01BRL09-UPC |
Fiber Type | All Single Mode and Multi Mode |
Insertion loss | ≤0.3dB |
Return Loss | ≥60dB |
Tensile strength (3.0mm) | >50N |
Operation Time | 1000times |
