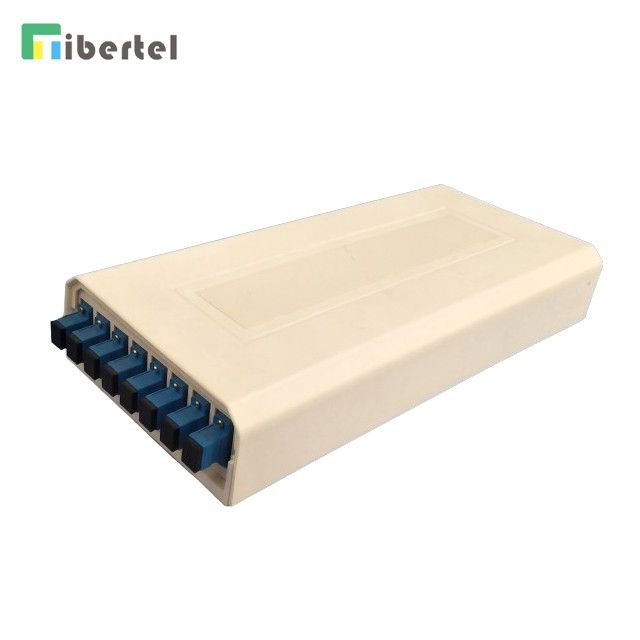

TJ01E08SC
Fibertel
Availability: | |
---|---|
* Overlapping splice trays make the optical fiber configuration, expanding the core capacity convenient.
Item | Indoor Wall Mounted Plastic Terminal Box | |||
Part No. | TJ01E12FC | TJ01E12ST | TJ01E08SC | TJ01E0812 |
Fiber capacity | 12 fibers | 12 fibers | 8 fibers | 8/12 fibers |
Adapter type | FC | ST | SC/LC | FC/ST/SC/LC |
Product Size(mm) | 285*132*46 | |||
Out package size(mm) | 630*330*340 | |||
Out package weight | 11.5kg | |||
Inner package net weight | 0.5kg | |||
Packing quantity | 20pcs | |||
Working temperature | -40℃~+60℃ | |||
Minimal fiber winding radius | ≤30mm |
